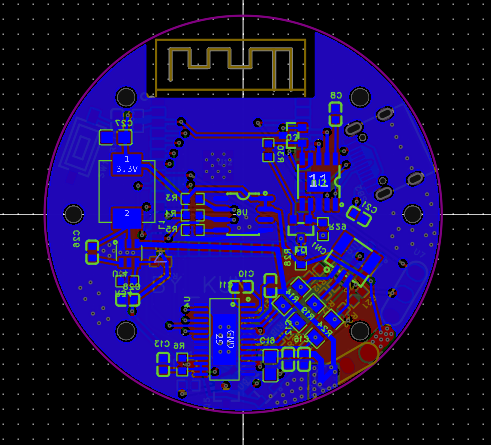

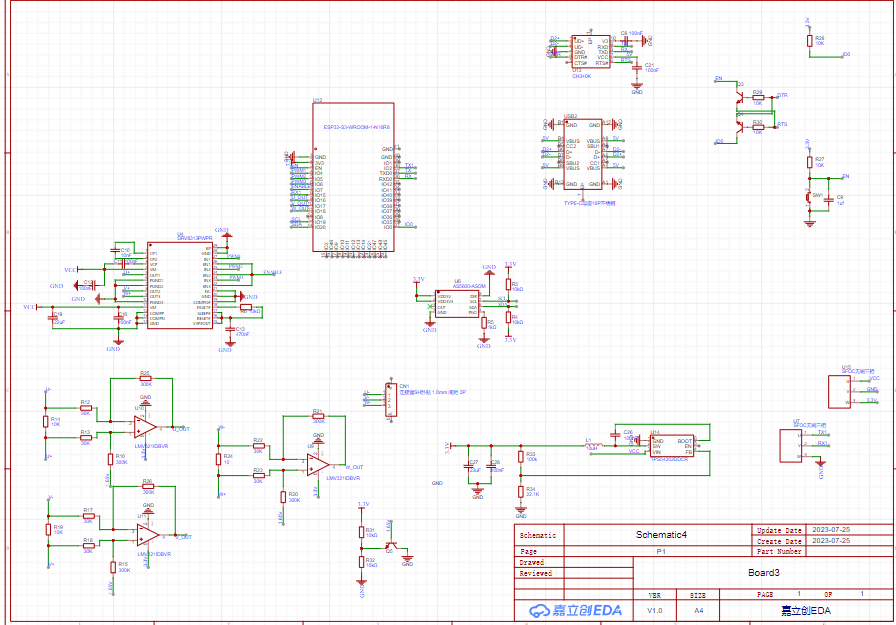

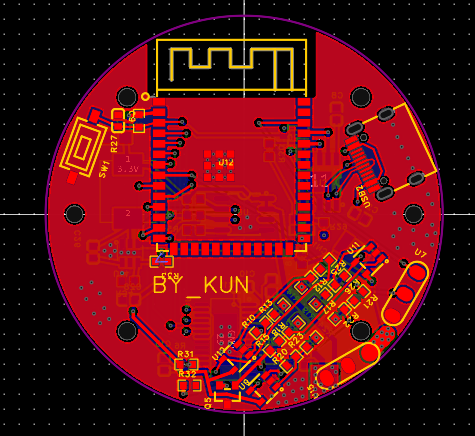

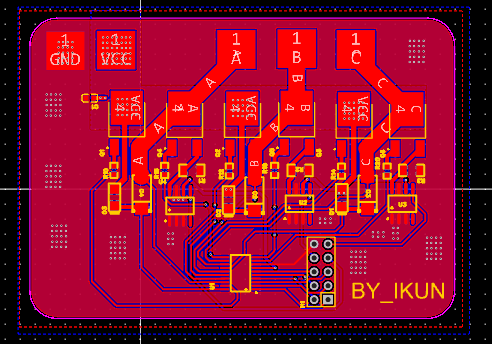

#include "foc_kun.h"
foc_kun::foc_kun(void)
{
}
foc_kun::foc_kun(uint8_t AH_temp, uint8_t AL_temp, uint8_t BH_temp, uint8_t BL_temp, uint8_t CH_temp, uint8_t CL_temp)
{
AH = AH_temp;
AL = AL_temp;
BH = BH_temp;
BL = BL_temp;
CH = CH_temp;
CL = CL_temp;
pwm_mode = 0;
pwm_max = 1;
for (uint8_t i = 0; i < pwm_resolution; i++)
{
pwm_max *= 2;
}
pwm_max--;
}
void foc_kun::begin(uint8_t AH_channel_temp, uint8_t BH_channel_temp, uint8_t CH_channel_temp)
{
pwm_mode = 0;
AH_channel = AH_channel_temp;
BH_channel = BH_channel_temp;
CH_channel = CH_channel_temp;
pinMode(AL, OUTPUT);
pinMode(BL, OUTPUT);
pinMode(CL, OUTPUT);
ledcSetup(AH_channel, pwm_mode, pwm_resolution);
ledcSetup(BH_channel, pwm_mode, pwm_resolution);
ledcSetup(CH_channel, pwm_mode, pwm_resolution);
ledcAttachPin(AH, AH_channel);
ledcAttachPin(BH, BH_channel);
ledcAttachPin(CH, CH_channel);
}
void foc_kun::six_step_clear(void)
{
ledcWrite(AH_channel, 0);
ledcWrite(BH_channel, 0);
ledcWrite(CH_channel, 0);
digitalWrite(BL, LOW);
digitalWrite(AL, LOW);
digitalWrite(CL, LOW);
}
void foc_kun::six_step_commutation(uint8_t num)
{
six_step_clear();
switch (num)
{
case 0:
six_step_clear();
ledcWrite(AH_channel, six_step_speed);
digitalWrite(BL, HIGH);
break;
case 1:
six_step_clear();
ledcWrite(AH_channel, six_step_speed);
digitalWrite(CL, HIGH);
break;
case 2:
six_step_clear();
ledcWrite(BH_channel, six_step_speed);
digitalWrite(CL, HIGH);
break;
case 3:
six_step_clear();
ledcWrite(BH_channel, six_step_speed);
digitalWrite(AL, HIGH);
break;
case 4:
six_step_clear();
ledcWrite(CH_channel, six_step_speed);
digitalWrite(AL, HIGH);
break;
case 5:
six_step_clear();
ledcWrite(CH_channel, six_step_speed);
digitalWrite(BL, HIGH);
break;
default:
break;
}
}
void foc_kun::park_inverse_transformation(void)
{
cosine = cos(theta);
sine = sin(theta);
u_alpha = u_d * cosine - u_q * sine;
u_beta = u_q * cosine + u_d * sine;
}
void foc_kun::clarke_inverse_transformation(void)
{
u_a = u_alpha;
u_b = (-1 / 2) * u_alpha + 0.8660254037844386 * u_beta;
u_c = (-1 / 2) * u_alpha - 0.8660254037844386 * u_beta;
}
void foc_kun::park_transformation(void)
{
i_d = i_alpha * cosine + i_beta * sine;
i_q = i_beta * cosine - i_alpha * sine;
}
void foc_kun::clarke_transformation(void)
{
i_alpha = i_a;
i_beta = (i_a + i_b * 2) * 0.5773502691896258;
}
void foc_kun::svpwm(void)
{
ts = 1;
u1 = u_beta;
u2 = -0.8660254037844386 * u_alpha - u_beta / 2;
u3 = 0.8660254037844386 * u_alpha - u_beta / 2;
uint8_t sector = (u1 > 0.0) + ((u2 > 0.0) << 1) + ((u3 > 0.0) << 2);
switch (sector)
{
case 5:
t4 = u3;
t6 = u1;
t_sum = t4 + t6;
if (t_sum > ts)
{
k_svpwm = ts / t_sum;
t4 = k_svpwm * t4;
t6 = k_svpwm * t6;
}
t7 = (ts - t4 - t6) / 2;
t_a = t4 + t6 + t7;
t_b = t6 + t7;
t_c = t7;
break;
case 1:
t2 = -u3;
t6 = -u2;
t_sum = t2 + t6;
if (t_sum > ts)
{
k_svpwm = ts / t_sum;
t2 = k_svpwm * t2;
t6 = k_svpwm * t6;
}
t7 = (ts - t2 - t6) / 2;
t_a = t6 + t7;
t_b = t2 + t6 + t7;
t_c = t7;
break;
case 3:
t2 = u1;
t3 = u2;
t_sum = t2 + t3;
if (t_sum > ts)
{
k_svpwm = ts / t_sum;
t2 = k_svpwm * t2;
t3 = k_svpwm * t3;
}
t7 = (ts - t2 - t3) / 2;
t_a = t7;
t_b = t2 + t3 + t7;
t_c = t3 + t7;
break;
case 2:
t1 = -u1;
t3 = -u3;
t_sum = t1 + t3;
if (t_sum > ts)
{
k_svpwm = ts / t_sum;
t1 = k_svpwm * t1;
t3 = k_svpwm * t3;
}
t7 = (ts - t1 - t3) / 2;
t_a = t7;
t_b = t3 + t7;
t_c = t1 + t3 + t7;
break;
case 6:
t1 = u2;
t5 = u3;
t_sum = t1 + t5;
if (t_sum > ts)
{
k_svpwm = ts / t_sum;
t1 = k_svpwm * t1;
t5 = k_svpwm * t5;
}
t7 = (ts - t1 - t5) / 2;
t_a = t5 + t7;
t_b = t7;
t_c = t1 + t5 + t7;
break;
case 4:
t4 = -u2;
t5 = -u1;
t_sum = t4 + t5;
if (t_sum > ts)
{
k_svpwm = ts / t_sum;
t4 = k_svpwm * t4;
t5 = k_svpwm * t5;
}
t7 = (ts - t4 - t5) / 2;
t_a = t4 + t5 + t7;
t_b = t7;
t_c = t5 + t7;
break;
default:
1;
break;
}
}
pwm_output foc_kun::turn_to(float angle_temp)
{
u_d = 0.5;
u_q = 0;
theta = angle_temp;
pwm_output result;
svpwm();
park_inverse_transformation();
result.a = t_a;
result.b = t_b;
result.c = t_c;
return result;
}
void foc_kun::test(float angle_temp)
{
u_a = cos(angle_temp);
}
